I wanted to relay the good news that the amenity MDF rooms panel is now online with the rest of the panels, all currently connected panels in the phase II side as talking to phase I as per ref 1 below.
Thank you and we will continue to update here as the last of the panels come online that our technician is installing.
Notes for record keeping:
"
Albridge switch 6 and 7 to our dumb switch
our dumb switch goes to our ubiquity M(Phase II) port 1

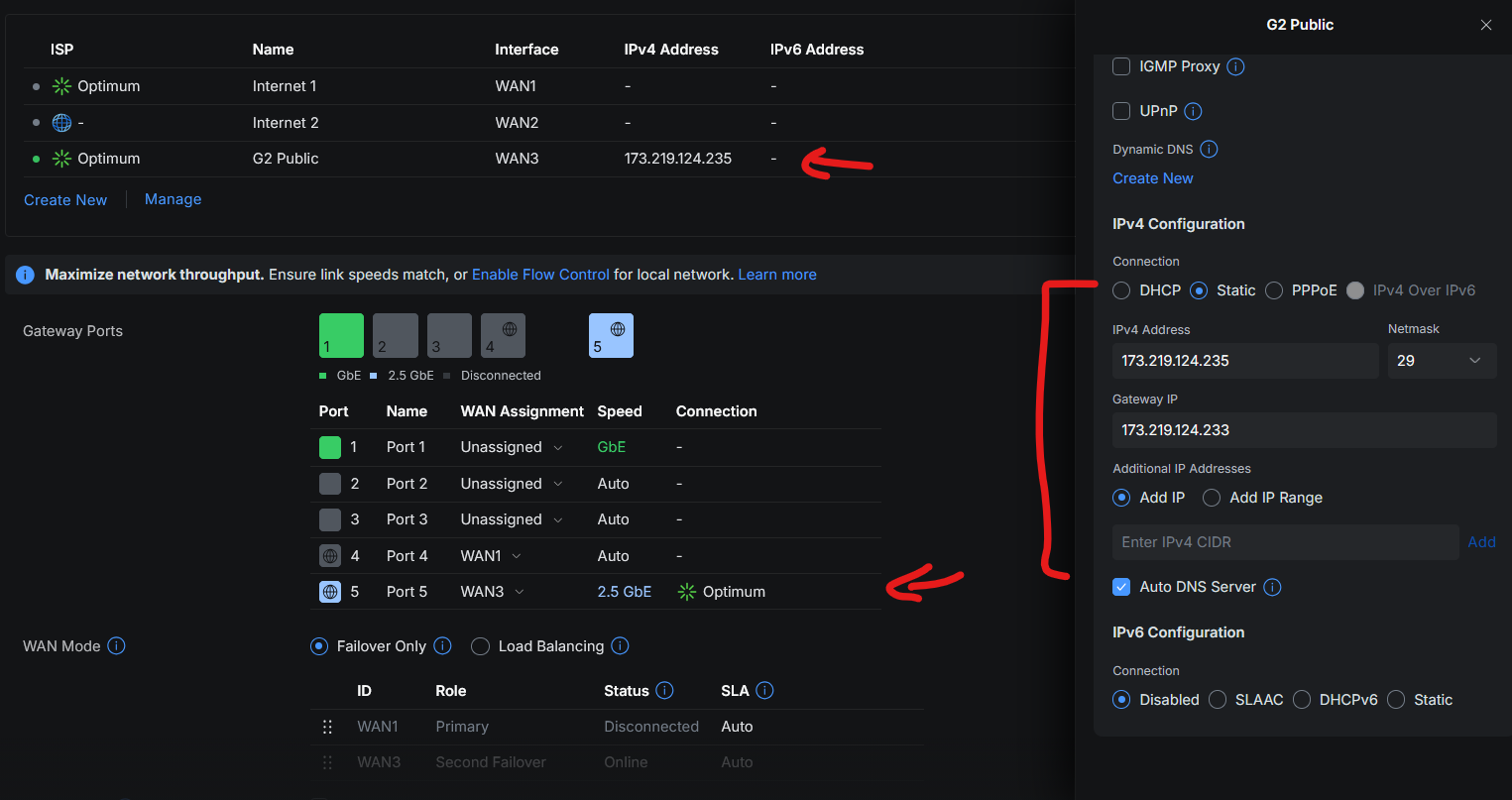

Albridge switch 8 to our ubiquity M(Phase II) port 5 for public IP(173.219.124.233) addressing that Advant has
rob will be connecting 3 more panels, 2 in N and 1 in P MDF rooms. All these next 3 are one door panels
in N, will have a dumb switch the two panels connect to and then across to Albridge port 8
in P, it will be 1 door panel directly to Albridge switch 8
Rob(Advant Tech) is labeling all the Ethernet cables
"

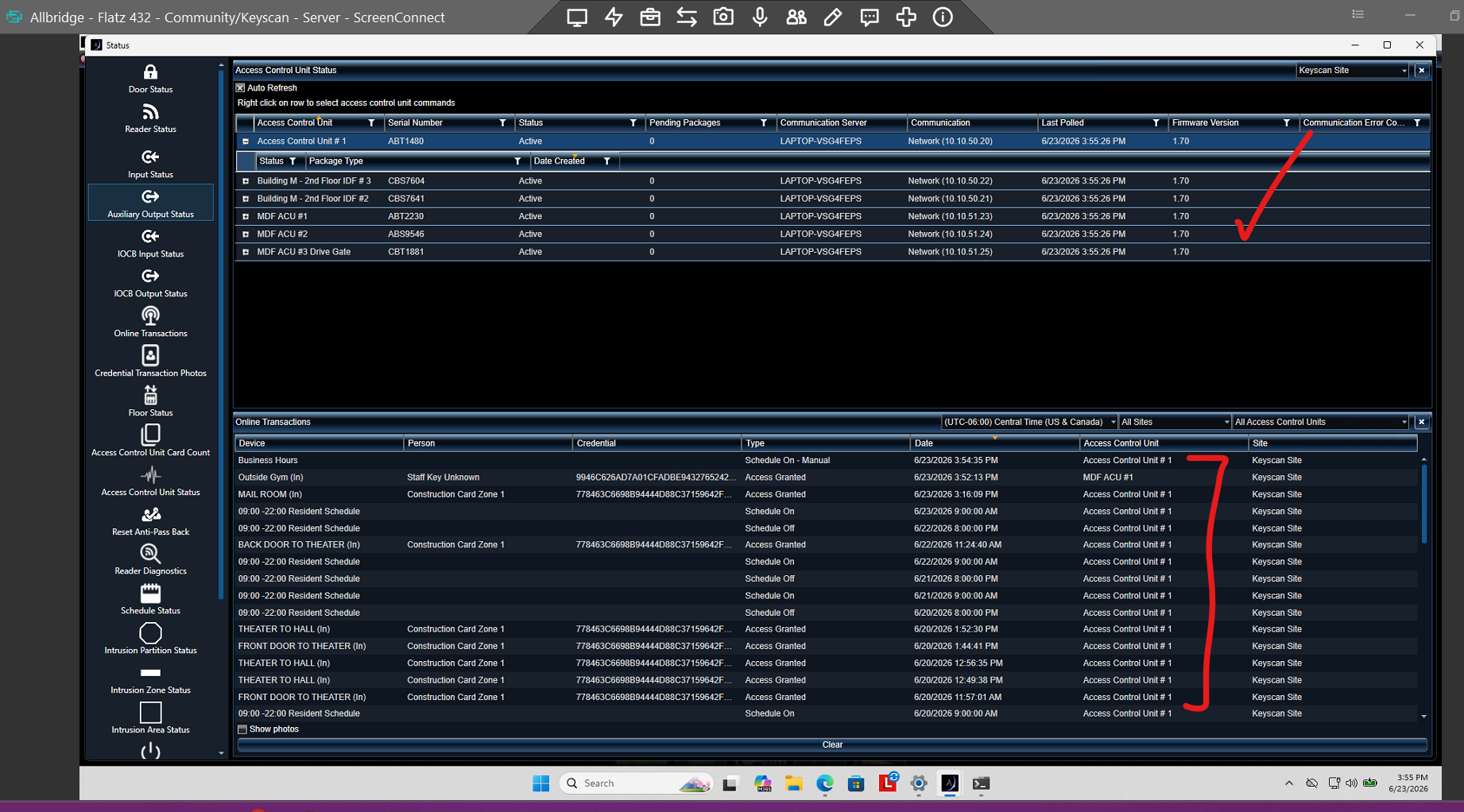

ref 1: Phase 1 Seeing all panels as online
Ticket: info on the public IP setup on port 5

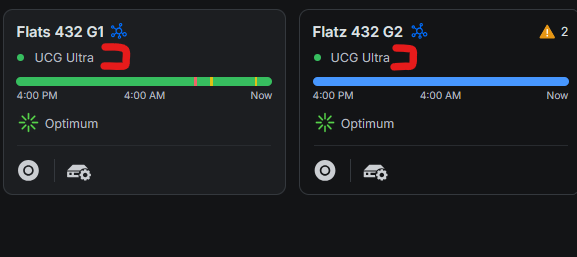

models of ubiquity

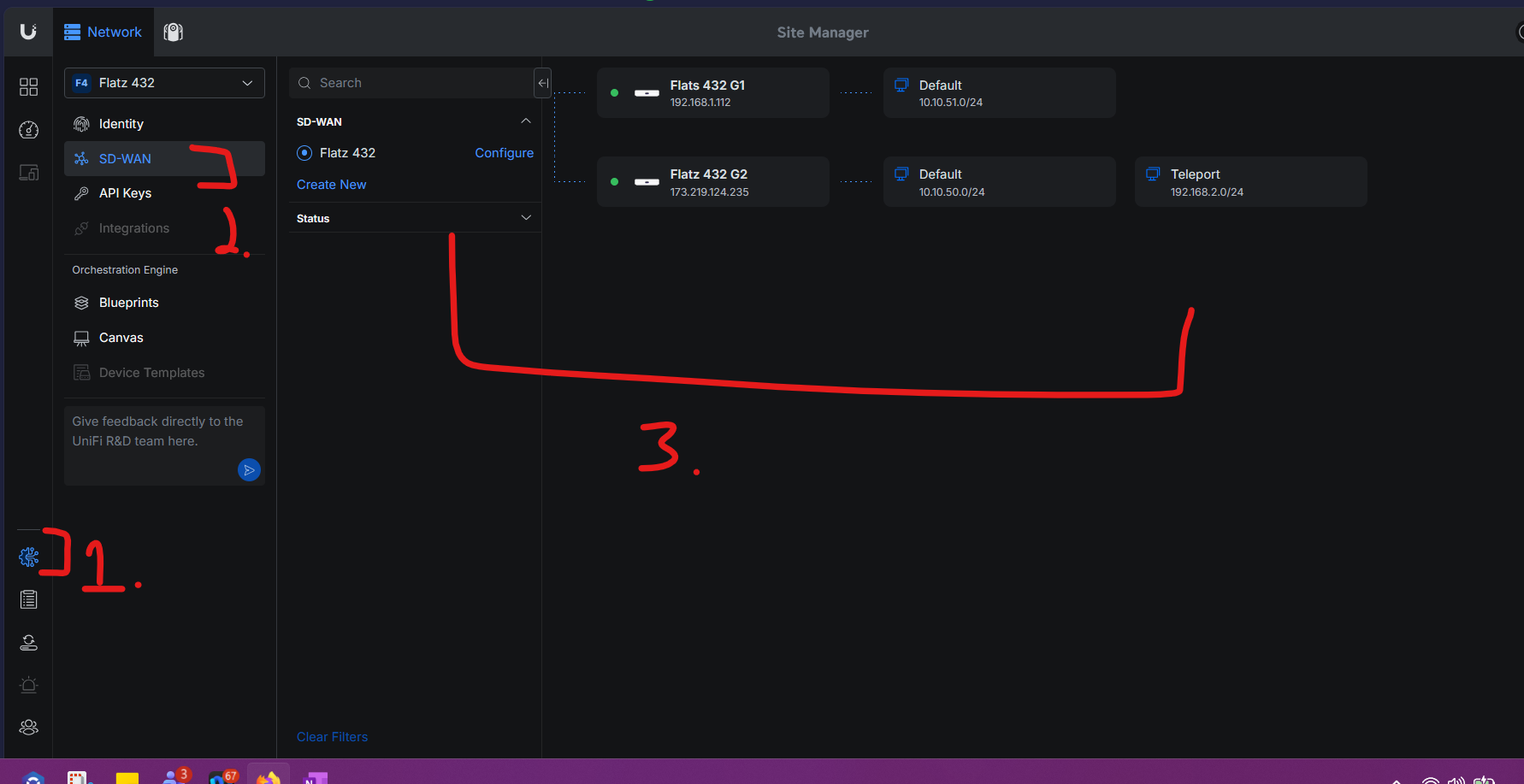

How the VPN is setup using site magic
